Equipment

automatic labeling machine tb300v

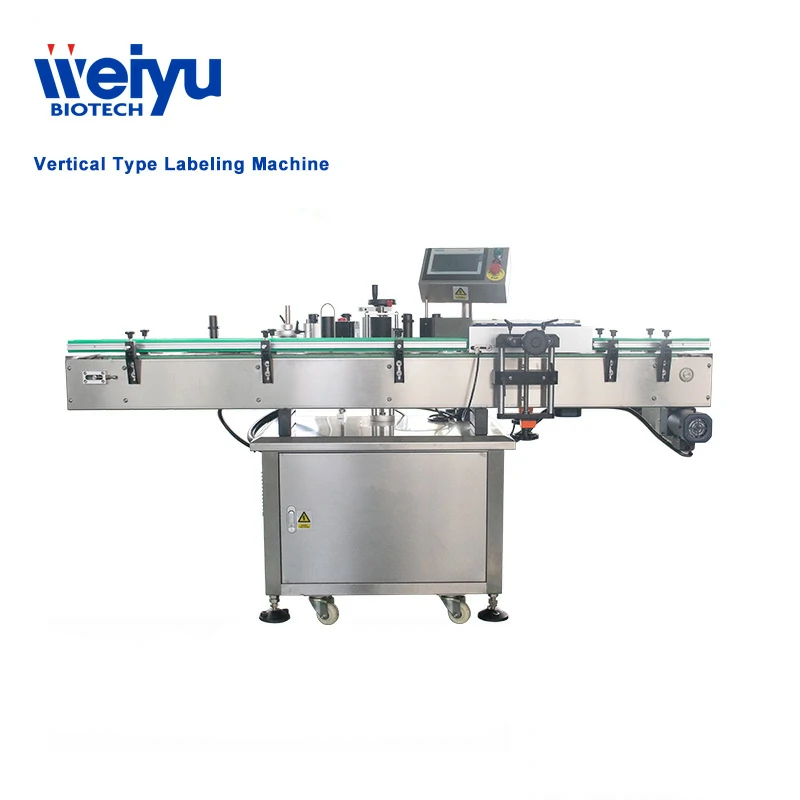

Automatic Labeling Machine TB300V

Automatic Labeling Machine TB300V is designed for the automatic application of self-adhesive labels on the curved surface of round bottles. It is widely used in food, medicine, and daily chemical industries for partial labeling or single-label applications.

The label is pasted on the bottle by the rolling mechanism, and the labeled object enters the next process or container by the conveyor belt of the labeling machine. More customized features are waiting for you to explore together, Contact Us and leave a message below, thanks!

Find us:
Youtube Facebook Whatsapp Envelope

General Specifications:

  1. Model: TB300V
  2. Voltage: AC110V/220V   50/60HZ
  3. Power: 1.2 KW
  4. Labeling Speed:  60-100 Bottle/Min（speed adjustable, depending on the size of the object and the length of the label)
  5. Labeling Accuracy: ±1mm（depending on product characteristics, hardness and roundness）
  6. Bottle Height: Height 40mm～250mm（Can be customized according to customer requirements）
  7. Label Specifications: Height 10～150mm  Lenght 15mm～300mm  （can be customized）
  8. Paper Roll Size: Inner diameter Φ76mm   Outer diameter Φ300mm（maximum）
  9. Machine Weight: 180Kg
  10. Dimension: 2000x1000x1400mm
