Ink-jet Printer PM800

Ink-jet Printer PM800 adopts modular design, superior performance to keep high efficiency of productions. Auto-cleaning function and one -click Auto switch, less maintenance. 30° slanted printhead, suitable for more production line. Injection molding Technology, prevent ink leakage. Auto-viscosity adjustment, ensure stability of machine. Simplify replacement of parts and make it recover rapidly from downtime. Integrated ink system, negative pressure ink absorption to ensure the effective use of ink. External power source, effectively decrease the temperature inside the cabinet. Water-proof keyboard, IP55 dust- proof. Print still after long prolonged shutdown. Ultra-quiet operation, reduce noise pollution in workplace.

More customized features are waiting for you to explore together, Contact Us and leave a message below, thanks!

Find us:
Youtube Facebook Whatsapp Envelope

General Specifications:

  1. Model: PM800
  2. Dots: 34 dots
  3. Printing performance: 1-4 Lines (7×5 matrix), 1-5 Lines (5X5 matrix), Max. speed=344m/min@5X5
  4. Font Matrix: Single-Line:5X5,7X5,9×6,12X8,16X11,19X14,24X17,32X22 / Twin-Line:5X5,7X5,9×6,12X8,16X11 / 3 Lines:5X5,7X5,9×6 / 4 Lines:5X5,7X5 / 5 Lines:5X5
  5. Printing Distance: Font Height:1-15mm / Printing distance:2mm to 30 mm Best: 10mm
  6. Print Content: English, Chinese, Arabic Numbers, serial number, Barcode, Shift, DM/QR Code, UPC A&E, EAN8 & 13, Gs1, Logo, UCC/EAN 128, Code 128A,B & C, Code 39, Code 125, automatic date/time/expiry date.
  7. Extra Memory: SD Card
  8. System Language: Chinese, English,Korean,Russian,Polish, Persian, Arabic,Spanish,German, Indonesian, Vietnamese, Croatian, Thai, Slovenian, Slovak, Bosnian, Portuguese, Italian,etc.customizable language.
  9. Memory Storage: 68 Messages + 50 Logo.
  10. Industrial Protection: IP55

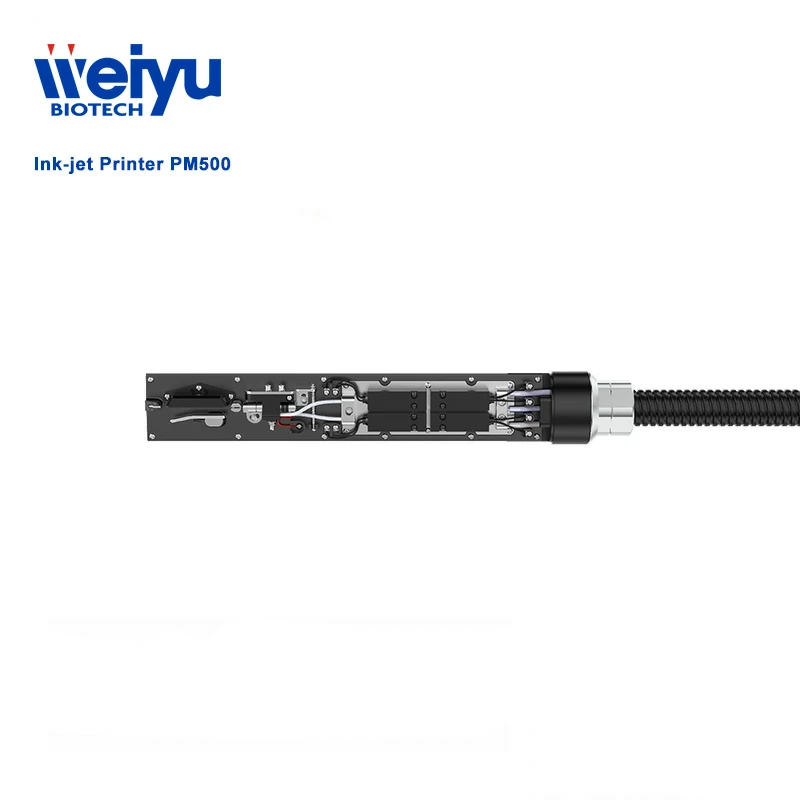

  11. Printhead: Super soft, length 3m, 30° bevel, constant temperature, 60μm
  12. Printing Direction: 360° All-round printing
  13. Cartridge Volume: lnk(500ml) / Make-up(750ml)
  14. Temperature/Humidity range: 0- 45°C / 0-95% Relative Humidity, Non-condensing
  15. Power: AC100- 240V, 50/60Hz
  16. Net Weight: 17 Kg
  17. Dimension: 410x330x445mm
