laser printer lp500-u for rapid test

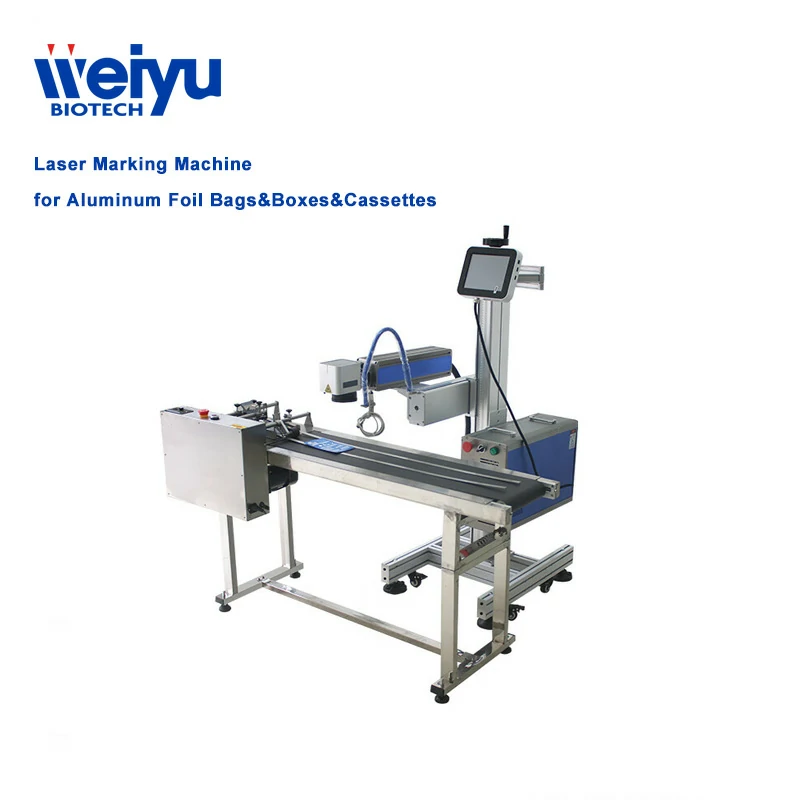

Laser Printer LP500-U

LP-500U Laser printer using a new intelligent vector control algorithm marking speed greatly improved. The unique laser control technology can easily mark the best printing effect on the film material. Compact size, low maintenance, no consumable, to provide permanent high quality coding. Permanent and high contrast marking to ensure product can be tracking, anti-counterfeiting and anti-channelization.

More customized features are waiting for you to explore together, Contact Us and leave a message below, thanks!

Find us:
Youtube Facebook Whatsapp Envelope

General Specifications:

  1. Model: LP-500U
  2. Applications: HDPE, LDPE, such as food, pipes, chemical products etc.
  3. Scan Mode: X．Y axial simultaneous scan
  4. Laser Type: UV Laser
  5. Wavelength: 355nm
  6. Output: 5/10W
  7. Marking Area: 70*70, 110*110, 90*90~800*800mm optional
  8. Font: Single/Double Font, Dot-matrix font
  9. Bar Codes: Code39/Code25/EAN-13/Code128 etc.
  10. QR Codes: PDF147/QRCODE/DATAMATRIX
  11. Graphic: DXF/PLT format vector image input/output
  12. Variable Data: Serial Number, Text, Date, Time, Counter, Shift Code
  13. Static Mark: Multiple products can be mark simultaneously
  14. Character Size: 0.1mm-Maxium marking area
  15. Input/Output: Sensor/Encoder
  16. Interface: SD card／USB2.0／communication interface
  17. Laser Installation Direction: No limited
  18. Cooling: Water Cooling
  19. UI: 10-inch touch screen, QWERTY or AZERTY Virtual Keyboard, Quick Icon Wizard Operations,
    Online Help, multi-Language, Support Ethernet remote PC operation and networking.
  20. Standard IP54 and IP65 optional
  21. Supply Voltage: 110-220V, 50-60Hz
  22. Power: 600w
  23. Pollution Degree: No chemicals are produces
  24. Weight: UV laser printer 20.8kgs; water cooling machine 24kgs
  25. Dimension: 85cm*44cm*31cm; 65cm*36cm*56cm
