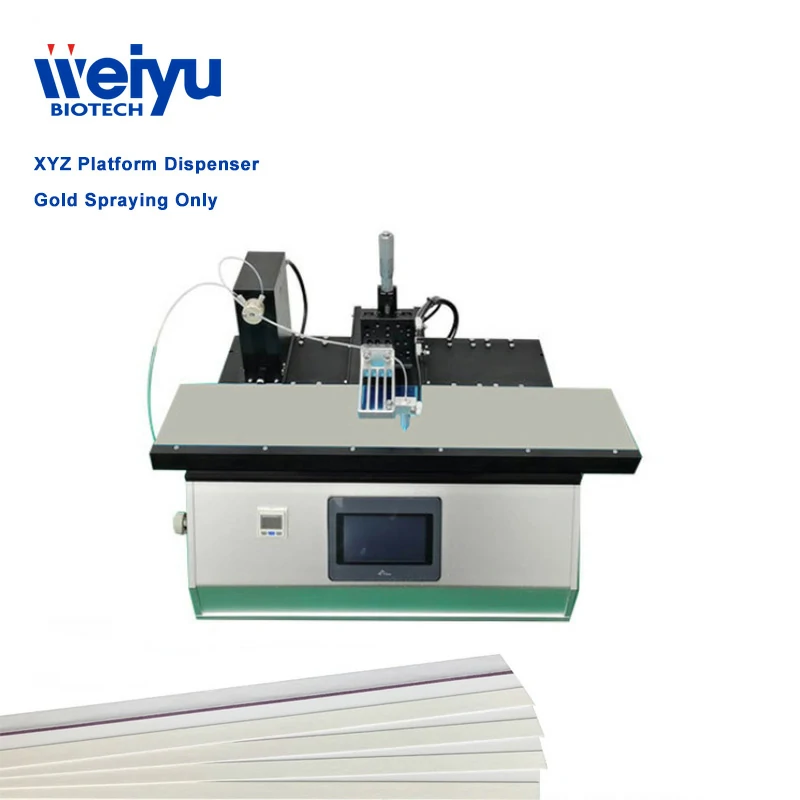

Lateral Flow Reagent Dispenser PJ3010

The Lateral Flow Assay Use Reagent Dispenser PJ3010 dispensing system is a versatile tool for developing and manufacturing diagnostic tests, this system usually has 1 channel for conjugate spraying only, more customized features are waiting for you to explore together, Contact Us and leave a message below, thanks!

Find us:
Youtube Facebook Whatsapp Envelope

General Specifications:

  1. Power: 110 or 220 VAC, 50/60 Hz
  2. Platform operation area: 550mm x 140mm
  3. Position accuracy: +/- 0.05 mm
  4. Residual solution: zero
  5. Conjugate pump volume: 1000 μl
  6. Conjugate spraying efficiency: 700~900 strips/hour (300mm/strip)
  7. Conjugate spraying area: 320mm x 140mm
  8. Precision ratio (pump) : ≤ 0.05% CV at full stroke
  9. Accuracy ratio (pump) : < 1.0% deviation from expected result at full stroke
  10. Dimensions: (Approx.) 550 mm x 420 mm x 480 mm
  11. Weight: (Approx.) 32 Kilograms
