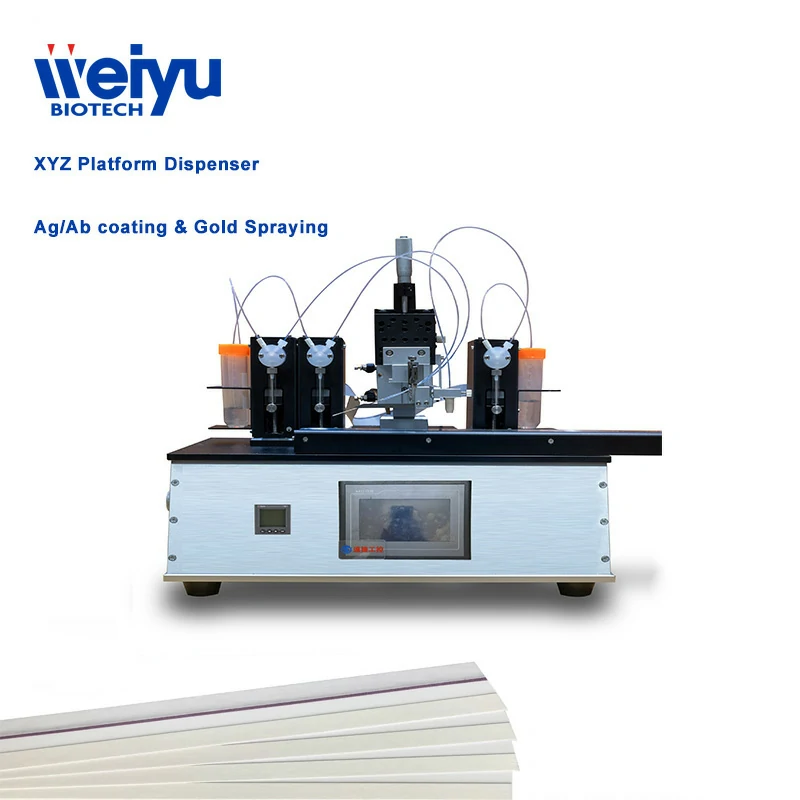

Lateral Flow Reagent Dispenser YT3010

The Lateral Flow Assay Use Reagent Dispenser YT3010 is a versatile and ideal tool for developing and manufacturing rapid diagnostic test or other IVD applications, this system usually has 3 channels for C/T lines dispensing and conjugate spraying. As per customers requirement, the YT3010 can be configured with more channels to dispense 2 or more test lines (up to 8 lines), more customized features are waiting for you to explore together, Contact Us and leave a message below, thanks!

Find us:
Youtube Facebook Whatsapp Envelope

General Specifications:

  1. Power: 110 or 220 VAC, 50/60 Hz
  2. Platform operation area: 550mm x 140mm
  3. Dispensing volume: 0.1~9.99 μl/cm
  4. Dispensing efficiency: 200~300 cards/hour (300 mm/card)
  5. Dispensing pump volume: 500μl or 1000μl (optional)
  6. Position accuracy: +/- 0.05 mm
  7. Minimum lines gap: 1 mm
  8. Residual solution: zero
  9. Conjugate pump volume: 1000 μl
  10. Conjugate spraying efficiency: 700~900 strips/hour (300mm/strip)
  11. Conjugate spraying area: 320mm x 140mm
  12. Precision ratio (pump) : ≤ 0.05% CV at full stroke
  13. Accuracy ratio (pump) : < 1.0% deviation from expected result at full stroke
  14. Dimensions: (Approx.) 550 mm x 420 mm x 480 mm
  15. Weight: (Approx.) 35 Kilograms
